Lubing Drinker Cups - 5 Pack

Five genuine cups for a multi-cup drinker

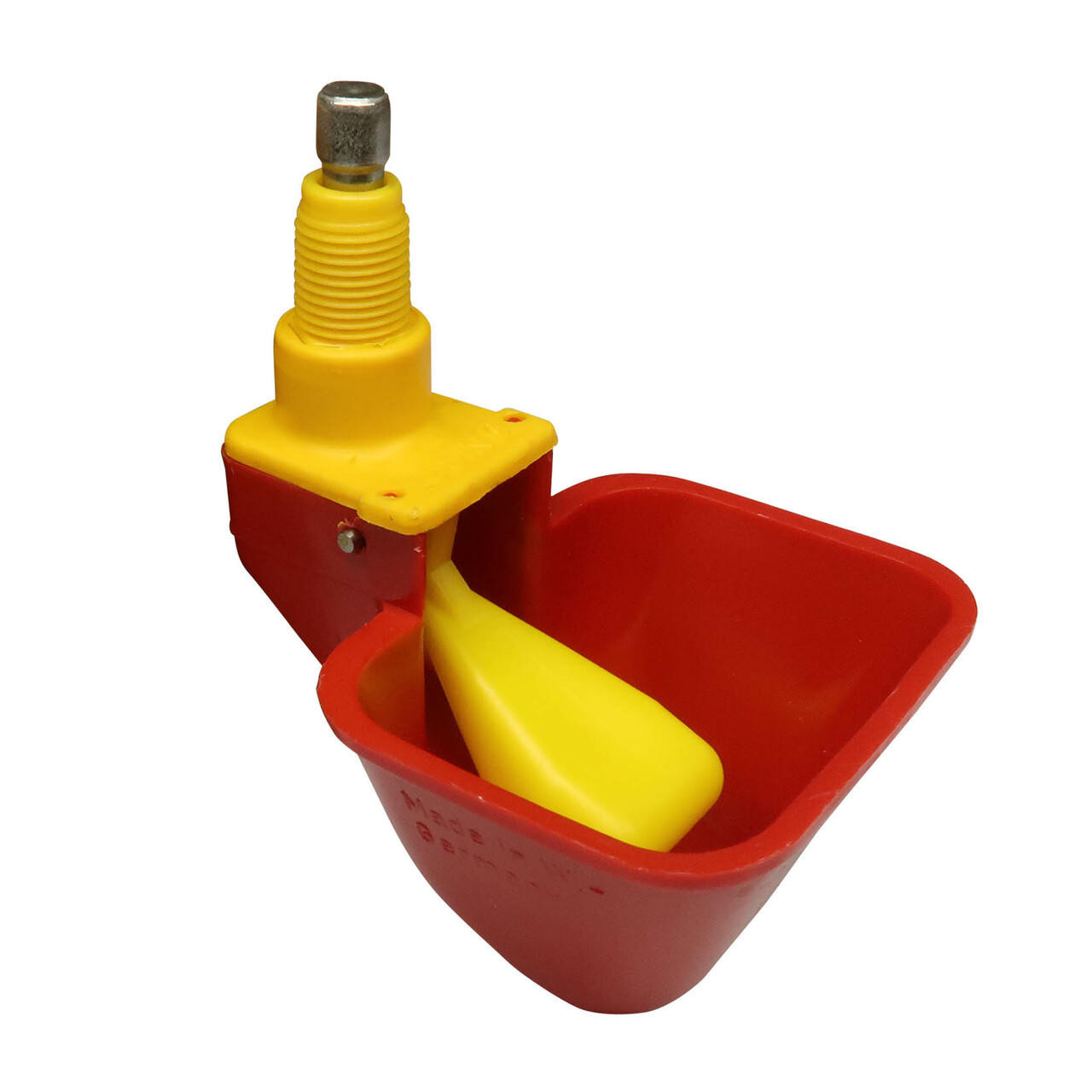

A drum drinker with three, four or five cups, or a run of outlet fittings, is easiest to service all at once. This pack gives you five genuine German-made Lubing drinker cups, the same cup used on every Dine-A-Chook cup drinker, each with an O-ring and a yellow Dine-A-Chook upgrade float.

What is in the pack

The upgrade float

Both floats refill the cup automatically. The difference is where they shut off: the original Lubing float closes the valve at a modest level, while the Dine-A-Chook upgrade float lets the cup fill a little higher first, so there is always more water in sight. Look closely and the only physical difference is a slightly thicker square pad where the float presses the valve. With pliers, gently grasp the pin at the side of the cup and draw it halfway out; the float drops free. Hold the other float in place and push the pin home.

How the cup works

A float sits in the cup. As your birds drink and the level drops, the float drops with it and opens a small stainless valve that lets water in from the drinker. As the cup fills, the float rises and shuts the valve again. Nothing for the birds to press or peck, and nothing to learn. The cup holds only a little water at a time, so there is nothing for a hen to stand in, scratch litter into or foul the way she would an open dish.

What it fits, and where to mount it

The cup screws into a standard 1/8” BSPF thread, so it fits every upright Dine-A-Chook drinker, every drum drinker outlet and every automatic drinker frame, as well as our drum drinker fittings. Seat an O-ring on the thread first, then screw the cup in firmly by hand: snug, not forced.

Mount it higher than feels natural. Chickens find water by smell rather than by looking down into it, so the cup can sit right up at the smallest bird’s eye height. A cup mounted low catches every bit of litter and dust the flock scratches up, and that is the most common reason a cup fouls quickly.

Low pressure only

Lubing cups are made for low-pressure, gravity-fed systems. The water surface must sit no more than 35 cm above the cup; any higher and the valve cannot hold it back, and the cup overflows. That is a setup issue, not a fault. Mains or tank pressure needs a header tank to bring it down first.

A cup that drips or overflows is nearly always telling you one of four things: head pressure over 35 cm, an airlock in the reservoir (loosen the lid and listen for the hiss), grit on the valve seat, or that it is due for a clean. A weep at the thread is usually a flattened or nicked O-ring.

Looking after them

Rinse the cups when you refill. Every fortnight, or monthly at the least, strip the cup down (cup, float, pin and the two-part valve) and wash everything in warm soapy water. Never boiling water and never the dishwasher. Rain and tank water carry more sediment, so clean more often on those supplies.

Specifications

12-month warranty on Lubing cups. Colour loss and fading, rodent damage, and cups used outside a low-pressure system or not installed as directed are not covered. Full terms on our warranty page. Delivery is a flat $22.95 NZ-wide, any size order.
